Wall Mount WiFi Digital Ventilation Controller Panel For HRV ERV Systems

Name: Wall Mount WiFi Digital Ventilation Controller Panel For HRV ERV Systems
Brand: OEM or neutral (no brand)
Price: 80 USD

Wall Mount WiFi Digital Ventilation Controller Panel For HRV ERV Systems Manufactures

Model Number : KF-900A-Y2

Temperature display range : 0℃ ---- 50℃

Payment Terms : T/T

Price : US$80

Control power : ≤ 200W

Supply Ability : 100000pcs

Certification : CE, RoHS

Operating temperature : -10℃--- +50℃

MOQ : 1

Delivery Time : 2-3 weeks

Rated voltage : AC110-240V, 50/60Hz

Place of Origin : China

Operating humidity : 5％RH ----90％RH

Brand Name : OEM or neutral (no brand)

Dimensions : 86 × 86 × 40 mm

Contact Now

Product Overview:

Fresh Air intelligent controller (KF-900A-Y2) adopts touch key technology, which is flexible and convenient to operate. The built-in sensors of the controller can monitor the indoor temperature, humidity, VOC, PM2.5 and CO2 concentration in real time. The output signal of the controller directly controls the startup and speed of fan.

It helps build a healthy, comfortable indoor environment while achieving high operational efficiency, energy conservation and eco-friendly ventilation performance for both living and working spaces.

Key Features:

Monitoring Items: PM2.5, CO₂, VOC, Ambient Temperature, Humidity
Fan Speed Level: 3 Speed Adjustable (Low / Medium / High)
Safety Function: Child Lock, Filter Replacement Reminder
Special Function: Bypass Valve Control
User-friendly physical button design for quick parameter setting, easy wiring and wall-mounted installation.
Optimizes indoor ventilation efficiency to cut down power waste, delivering eco-friendly, energy-saving operation while creating a comfortable, healthy indoor living and working environment.

Product Specifications:

* Dimension:	86 × 86 × 40 mm	* Temperature display range:	0℃ —— 50℃
* Fixing hole distance:	60mm (standard)	* Operating temperature:	-10℃--- +50℃
* Wiring terminal:	Max 2.5 mm2 wire	* Operating humidity:	5％RH——90％RH
* Rated voltage:	AC110-240V, 50/60Hz	* Storage temperature:	-10℃--- +60℃
* Standby Power:	≤ 2.0W	* Storage humidity:	≤ 60％RH
* Control power:	≤ 200W	* Life:	≥ 5 years
* Suitable for fans:	AC/EC/DC

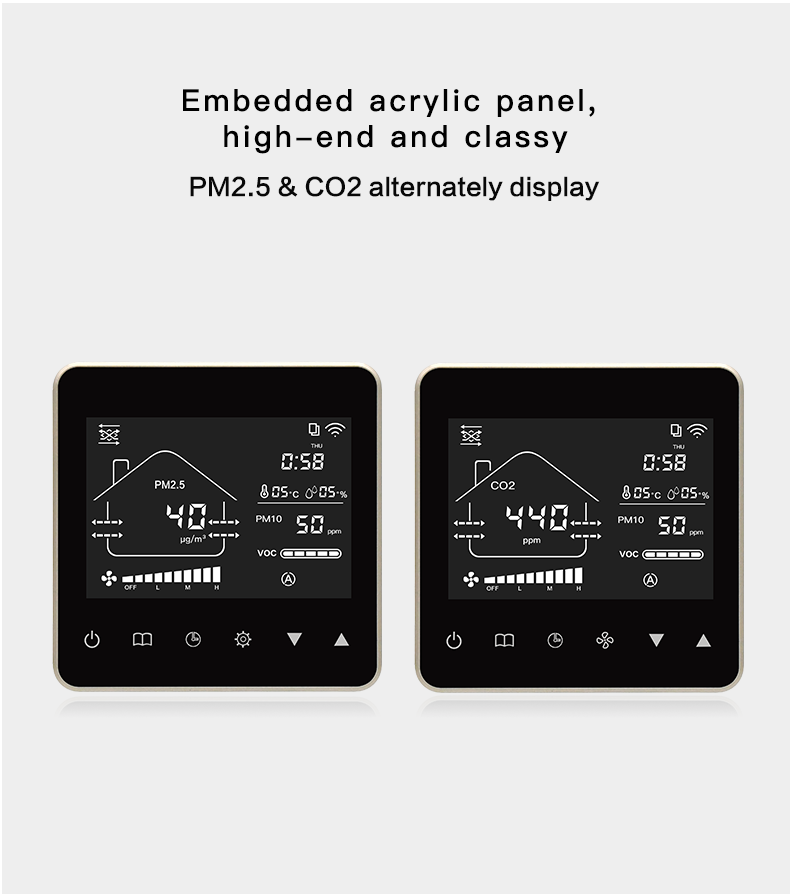

Product Images:

Wall Mount WiFi Digital Ventilation Controller Panel For HRV ERV Systems

Wiring Diagram:
